Kawasaki Ninja Service Manual: Brake Pedal Removal

Kawasaki Ninja Service Manual / Brakes / Brake Lever, Brake Pedal / Brake Pedal Removal

Brake Pedal Removal

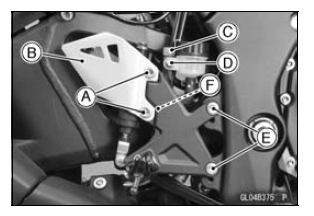

Brake Pedal Removal


Brake Pedal Position Adjustment

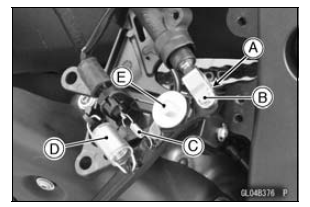

NOTE Usually it is not necessary to adjust the pedal position, but always adjust it when push rod locknut has been loosened. Loosen the locknut [A] and turn the push rod with the hex head [B] ...

Brake Pedal Installation
Apply grease to the brake pedal pivot shaft [A]. Install: Washers [B] Brake Pedal [C] Apply a non-permanent locking agent to the threads of the brake pedal mounting bolt [D], and tighten ...
