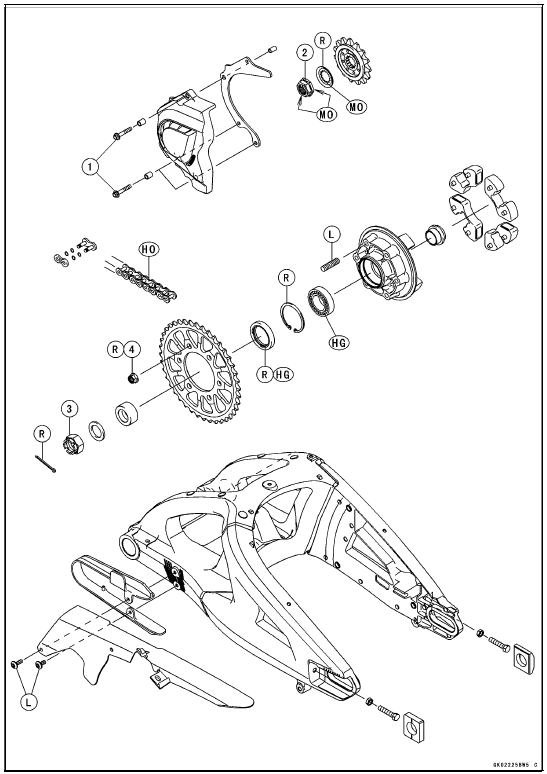

Exploded View


Exploded View

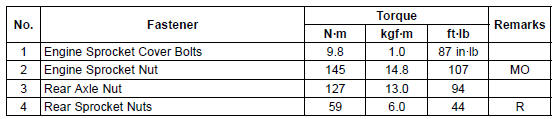

HG: Apply high-temperature grease.

HO: Apply heavy oil.

L: Apply a non-permanent locking agent.

MO: Apply molybdenum disulfide oil solution.

(mixture of the engine oil and molybdenum disulfide grease in a weight ratio 10:1) R: Replacement Parts

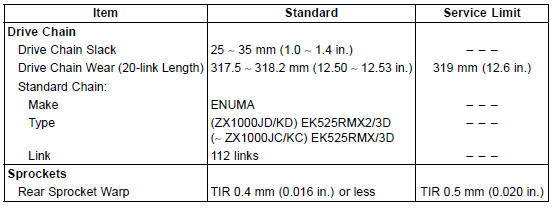

Specifications

Specifications


Special Tools

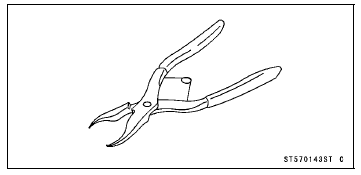

Inside Circlip Pliers: 57001-143


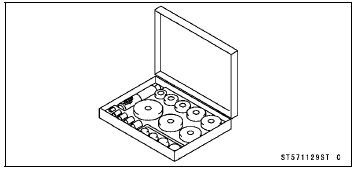

Bearing Driver Set: 57001-1129
