Kawasaki Ninja Owners Manual: S-KTRC Warning Indicator Light

Kawasaki Ninja Owners Manual / General information / Meter instruments / Warning/Indicator Lights / S-KTRC Warning Indicator Light

The yellow warning indicator light in the meter unit functions as the S-KTRC warning indicator light. The yellow warning indicator light and all S-KTRC mode indicators blink whenever there is a malfunction in the S-KTRC system.

At this time, the S-KTRC system does not function.

If the yellow warning indicator light and all S-KTRC mode indicators blink, you should have the S-KTRC system checked by an authorized Kawasaki dealer.

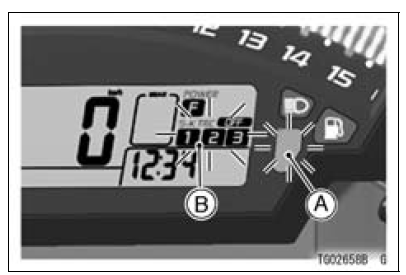

S-KTRC Warning Indicator Light


A. Yellow Warning Indicator light

B. S-KTRC Mode Indicator
