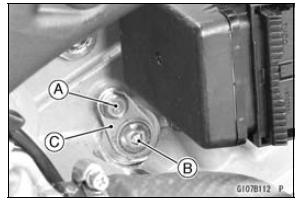

Starter Clutch Removal


Take care not to drop the starter clutch parts.

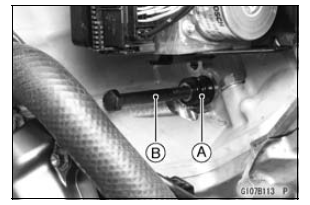

Starter Clutch Removal


Starter Clutch
...

Starter Clutch Installation
Replace the O-ring [A] with a new one and apply grease. Apply molybdenum disulfide grease to the starter clutch shaft [B]. Install: Starter Clutch [C] Spacer (Small Diameter) [D] Spacer ...
