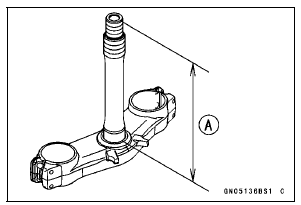

If the steering stem [A] is bent, replace the steering stem.

Steering Stem Warp Inspection


Stem Cap Deterioration, Damage Inspection

Replace the stem cap if its oil seal [A] shows damage.

Stem Cap Deterioration, Damage Inspection


Stem, Stem Bearing Installation
Replace the bearing outer races with new ones. Drive them into the head pipe at the same time. Special Tools - Head Pipe Outer Race Press Shaft [A]: 57001-1075 Head Pipe Outer Race Driver, ...
