Kawasaki Ninja Service Manual: Front Fork Disassembly

Kawasaki Ninja Service Manual / Suspension / Front Fork / Front Fork Disassembly

Remove the front fork (see Front Fork Removal (Each Fork Leg))
Drain the fork oil (see Front Fork Oil Change).

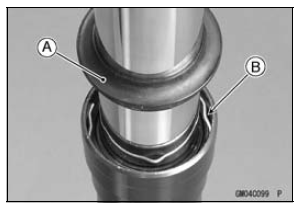

Take the dust seal [A] off the outer tube.
Remove the retaining ring [B].
Separate the outer tube from the inner tube.

Front Fork Disassembly

Remove the following parts from the inner tube.

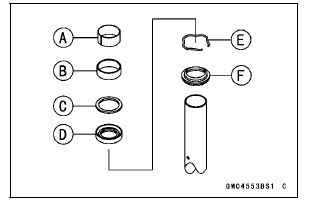

Slide Bushing [A] Guide Bushing [B] Washer [C] Oil Seal [D] Retaining Ring [E] Dust Seal [F]

Front Fork Disassembly

Front Fork Oil Change

Remove the front fork (see Front Fork Removal (Each Fork Leg)). Turn the spring preload adjuster fully counterclockwise for removing the piston rod assy easily. Hold the inner tube lower en ...

Front Fork Assembly

Replace the following parts with new ones. Slide Bushing Guide Bushing Oil Seal Install the following parts to the inner tube [A]. Dust Seal [B] Retaining Ring [C] Apply grease ...
