Meter instruments

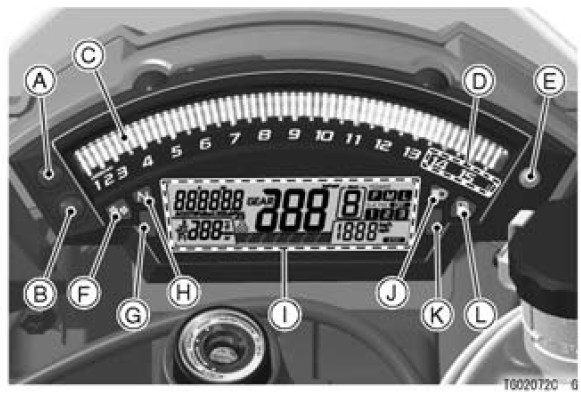

  1. Upper Button
  2. Lower Button
  3. Tachometer (with Shift-Up Indicator)
  4. Red Zone
  5. Ambient Brightness Sensor
  6. Turn Signal Indicator Light
  7. Warning Indicator Light (Red)
  8. Neutral Indicator Light
  9. Multifunction Meter
  10. High Beam Indicator Light
  11. Warning Indicator Light (Yellow)
  12. Fuel Level Warning Indicator Light

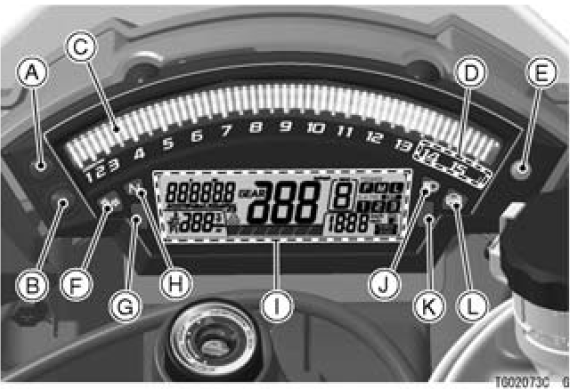

For models equipped with KIBS*

For models equipped with KIBS*


  1. Upper Button
  2. Lower Button
  3. Tachometer (with Shift-Up Indicator)
  4. Red Zone
  5. Ambient Brightness Sensor
  6. Turn Signal Indicator Light
  7. Warning Indicator Light (Red)
  8. Neutral Indicator Light
  9. Multifunction Meter
  10. High Beam Indicator Light
  11. Warning Indicator Light (Yellow)
  12. ABS Indicator Light

KIBS*: Kawasaki Intelligent anti-lock Brake System

General information
...

Tachometer
The tachometer shows the engine speed in revolutions per minute (r/min, rpm). On the right side of the tachometer face is a portion called the “red zone”. Engine r/min (rpm) in the red zo ...
