Kawasaki Ninja Service Manual: Subthrottle Sensor Removal/Adjustment

Kawasaki Ninja Service Manual / Self-Diagnosis System / Subthrottle Sensor (Service Code 32) / Subthrottle Sensor Removal/Adjustment

NOTICE

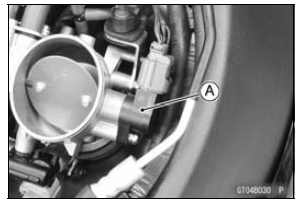

Do not remove or adjust the subthrottle sensor [A] since it has been adjusted and set with precision at the factory.

Never drop the throttle body assy especially on a hard surface. Such a shock to the subthrottle sensor can damage it.

Subthrottle Sensor Removal/Adjustment

Subthrottle Sensor (Service Code 32)

The subthrottle sensor is a rotating variable resistor that change output voltage according to throttle operating. The ECU senses this voltage change and determines fuel injection quantity, and ign ...

Subthrottle Sensor Input Voltage Inspection

NOTE Be sure the battery is fully charged. Turn the ignition switch to OFF. Remove the air cleaner housing (see Air Cleaner Housing Removal in the Fuel System (DFI) chapter) Disconnect the ...
