Kawasaki Ninja Service Manual: Exhaust Butterfly Valve Actuator Removal

Kawasaki Ninja Service Manual / Self-Diagnosis System / Exhaust Butterfly Valve Actuator (Service Code 63) / Exhaust Butterfly Valve Actuator Removal

NOTICE

Never drop the exhaust butterfly valve actuator especially on a hard surface. Such a shock to the actuator can damage it.

Exhaust Butterfly Valve Actuator Removal

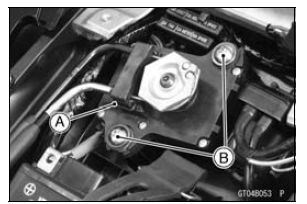

Exhaust Butterfly Valve Actuator Removal

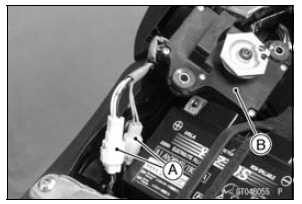

Exhaust Butterfly Valve Actuator Removal


Exhaust Butterfly Valve Actuator Removal


NOTICE

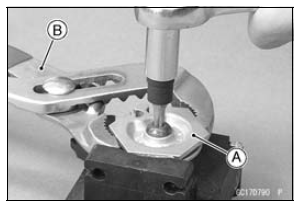

If the pulley bolt is removed without holding, the actuator damage will occur.

Exhaust Butterfly Valve Actuator (Service Code 63)
...

Exhaust Butterfly Valve Actuator Installation
Install the pulley [A] on the actuator so that the hole side [B] align with the groove [C] on the shaft. Make sure that the groove on the shaft is pointing toward the center of the screw [D]. ...
