Remove the brake pads (see Front/Rear Brake Pad Removal in the Brakes chapter).

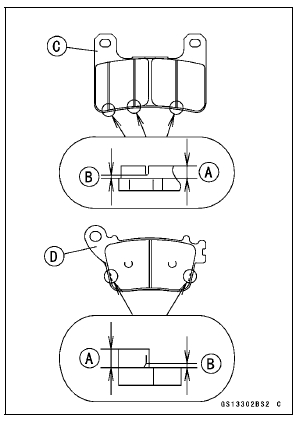

Check the lining thickness [A] of the pads in each caliper.

Brake Pad Wear Inspection

If the lining thickness of either pad is less than the service limit [B], replace both pads in the caliper as a set.

Front Brake Pad [C] Rear Brake Pad [D]

Pad Lining Thickness

Standard:

Front 4.0 mm (0.16 in.)

Rear 4.5 mm (0.18 in.)

Service Limit: 1 mm (0.04 in.)

Brake Fluid Level Inspection

Check that the brake fluid level in the front brake reservoir [A] is above the lower level line [B]. NOTE Hold the reservoir horizontal by turning the handlebar when checking brake fluid ...

Brake Operation Inspection

Inspect the operation of the front and rear brake by running the vehicle on the dry road. If the brake operation is insufficiency, inspect the brake system. WARNINGWhen test riding th ...
