Clean the cylinder head.

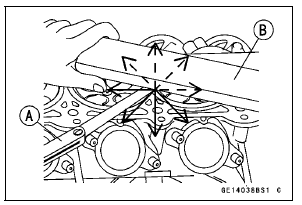

Lay a straightedge across the lower surface of the cylinder head at several positions.
Use a thickness gauge [A] to measure the space between the straightedge [B] and the head.

Cylinder Head Warp Standard: – – –

Service Limit: 0.05 mm (0.0020 in.)

Cylinder Head Warp Inspection

If the cylinder head is warped more than the service limit, replace it.
If the cylinder head is warped less than the service limit, repair the head by rubbing the lower surface on emery paper secured to a surface plate (first No. 200, then No.

400).
