Kawasaki Ninja Service Manual / Fuel System (DFI) / DFI Power Source

ECU Fuse Removal

Refer to the 30 A Main/15 A ECU Fuse Removal in the Electrical System chapter.

ECU Fuse Installation

If a fuse fails during operation, inspect the DFI system to determine the cause, and then replace it with a new fuse of proper amperage.

ECU Fuse Inspection

Refer to the Fuse Inspection in the Electrical System chapter.

ECU Main Relay Removal/Installation

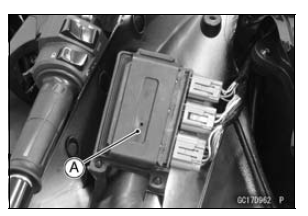

The ECU main relay is built in the relay box [A].

ECU Main Relay Removal/Installation


ECU Main Relay Inspection

Refer to the Relay Circuit Inspection in the Electrical System chapter.

CAN Communication Line
CAN Communication Line Resistance Inspection In this model, resistors for CAN communication line are built in the ECU [A] and meter unit. Refer to the Meter Unit Inspection in the Electrical Sy ...
