Do not remove pressed oil or grease seals unless removal is necessary. Replace with new ones whenever removed.

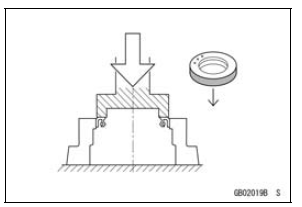

Press new oil seals with manufacture and size marks facing out. Make sure the seal is aligned properly when installing.

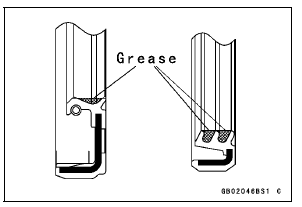

Apply specified grease to the lip of seal before installing the seal.
Circlips, Cotter Pins
Replace the circlips or cotter pins that were removed with new ones. Take care not to open the clip excessively when installing to prevent deformation.
Ball Bearing and Needle Bearing
LubricationSwingarm Installation
Visually inspect the chain guide [A].
Replace the chain guide if it shows any signs of abnormal
wear or damage.
Apply a non-permanent locking agent to the threads of
the chain guide bolt [B].
Apply plenty of grease to the lip of the oil seals [A].
Be sure to install the oil seals ...
Rear Fender Front Installation
Installation is the reverse of removal. Note the following.
Run the harness, cables and leads correctly (see Cable,
Wire, and Hose Routing section in the Appendix chapter).
When installing the clamp [A] on the rear fender front [B],
install it so that the clamp positions at near the ...
Fuel Hose Inspection (fuel leak, damage, installation condition)
If the motorcycle is not properly handled, the high pressure
inside the fuel line can cause fuel to leak [A] or the
hose to burst. Remove the fuel tank (see Fuel Tank Removal
in the Fuel System (DFI) chapter) and check the
fuel hoses.
Replace the fuel hose if any fraying, cracks [B] or ...
