NOTICE
The O-rings between the side plates seal in the lubricant between the pin and the bushing. To avoid damaging the O-rings and resultant loss of lubricant, observe the following rules.
Use only kerosene or diesel oil for cleaning of the O-ring of the drive chain. Any other cleaning solution such as gasoline will cause deterioration and swelling of the O-ring. Immediately blow the chain dry with compressed air after cleaning. Complete cleaning and drying the chain within 10 minutes.

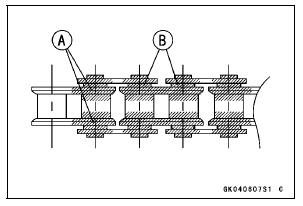

Oil Applied Areas [A] O-rings [B]
Final Drive
Drive Chain Slack InspectionIdle Speed Control Valve Actuator Installation
Replace the O-ring [A] with a new one.
Apply engine oil to the new O-ring.
Install the idle speed control valve [A] as shown in the
figure.
10° [B]
Tighten:
Torque - Idle Speed Control Valve Actuator Retainer
Screws: 2.06 N·m (0.21 kgf·m, 18 in·lb)
Install th ...
Crankshaft Sensor Peak Voltage Inspection
NOTE
Be sure the battery is fully charged.
Using the peak voltage adapter [A] is more reliable way
to determine the condition of the crankshaft sensor than
crankshaft sensor internal resistance measurements.
Disconnect the crankshaft sensor lead connector (see
Crankshaft Sensor ...
CAN Communication (Transmission)/CAN Bus OFF Monitor Inspection (Service Code
b 57) CAN Communication (Reception) Monitor Inspection (Service Code b 58)
Remove:
Seat (see Seat Removal in the Frame chapter)
Immobilizer (Equipped Models)/Kawasaki Diagnostic
System Connector Cap [A]
Measure the CAN communication line resistance.
Immobilizer (Equipped Models)/Kawasaki Diagnostic
System Connector [A]
GY/BL Terminal [B]
LB Ter ...
