Kawasaki Ninja Service Manual: Fuel Injector Audible Inspection

Kawasaki Ninja Service Manual / Fuel System (DFI) / Fuel Injectors / Fuel Injector Audible Inspection

NOTE

1. The engine speed is more than 6 000 r/min (rpm).

2. The throttle opening is more than 12°.

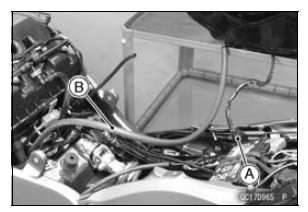

Special Tool - Extension Tube: 57001-1578

Fuel Injector Audible Inspection

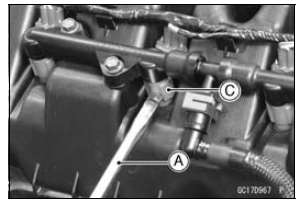

A sound scope can also be used.

The click interval becomes shorter as the engine speed rises.

Fuel Injector Audible Inspection


If all the fuel injectors click at a regular intervals, the fuel injectors are normal.

If any fuel injector does not click, check the fuel injector resistance (see Fuel Injector Resistance Inspection).

Fuel Injector Audible Inspection


Fuel Injectors
Primary Fuel Injector Removal/Installation Refer to the Throttle Body Assy Disassembly/Assembly. Secondary Fuel Injector Removal/Installation Refer to the Nozzle Assy Disassembly/Assembly. ...

Fuel Injector Resistance Inspection
...
