Kawasaki Ninja Service Manual: Oil Pump Drive Gear Shaft Installation

Kawasaki Ninja Service Manual / Engine Lubrication System / Oil Pump / Oil Pump Drive Gear Shaft Installation

Special Tool - Outside Circlip Pliers: 57001-144

Oil Pump Drive Gear Shaft Installation


Oil Pump Drive Gear Shaft Removal

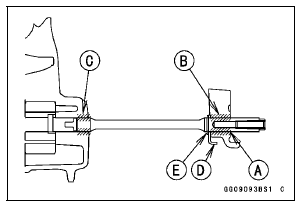

Remove: Clutch (see Clutch Removal in the Clutch chapter) Oil Pan (see Oil Pan Removal) Circlip [A] Washer [B] Oil Pump Drive Gear Shaft [C] Special Tool - Outside Circlip Pliers: 5700 ...
