The engine and frame serial numbers are used to register the motorcycle. They are the only means of identifying your particular machine from others of the same model type. These serial numbers may be needed by your dealer when ordering parts. In the event of theft, the investigating authorities will require both numbers as well as the model type and any peculiar features of your machine that can help them identify it.

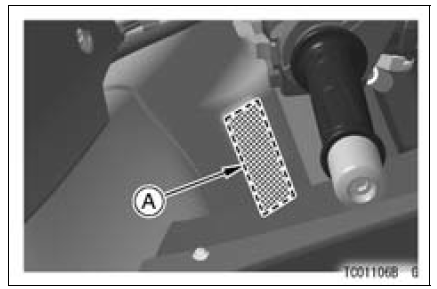

Frame No.
A. Frame Number
Engine No.
A. Engine Number
Specifications
Location of partsKIBS System Circuit
1. Ignition Switch
2. Front Wheel Rotation Sensor
3. Front Brake Light Switch
4. Joint Connector C
5. Joint Connector D
6. ECU
7. Rear Wheel Rotation Sensor
8. Rear Brake Light Switch
9. Battery 12 V 8.6 Ah
10. Main Fuse 30 A
11. KIBS Motor Relay Fuse 30 A
12. KIBS Solenoid Valve Rela ...
Coolant Flow Chart
1. Radiator
2. Radiator Fan
3. Water Pump
4. Oil Cooler
5. Oil Cooler Intake Hose
6. Oil Cooler Outlet Hose
7. Cylinder Jacket
8. Cylinder Head Jacket
9. Thermostat Housing
10. Air Bleeder Hose
11. Radiator Cap
12. Radiator Overflow Hose
13. Reserve Tank
14. Reserve Tank Overflow Ho ...
Multifunction Display
The multifunction display indicates
the following modes.
Odometer
Trip meter A
Trip meter B
Current Mileage
Average Mileage
Fuel Consumption
Stop Watch
These display modes can be shifted
by pushing the upper button.
NOTE
The “FUEL” warning can be indicated
if the ...
