Kawasaki Ninja Service Manual: Special Tools

Kawasaki Ninja Service Manual / Suspension / Special Tools

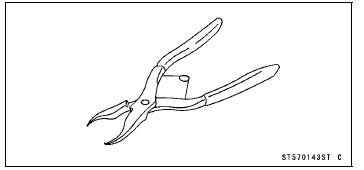

Inside Circlip Pliers: 57001-143

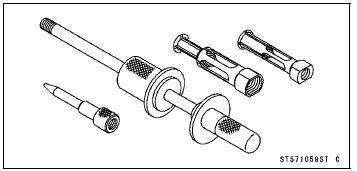

Oil Seal & Bearing Remover: 57001-1058

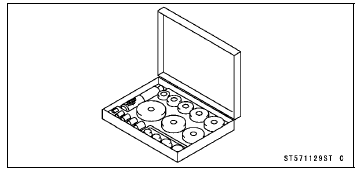

Bearing Driver Set: 57001-1129

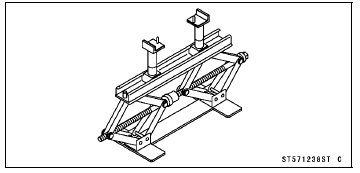

Jack: 57001-1238

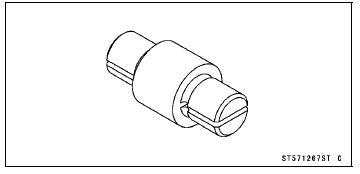

Bearing Remover Head, 15 ×
17:
57001-1267

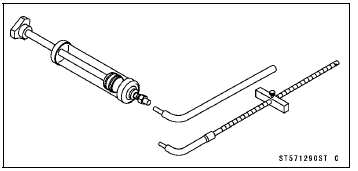

Fork Oil Level Gauge: 57001-1290

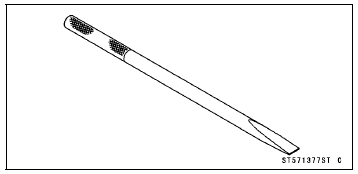

Bearing Remover Shaft, 13: 57001-1377

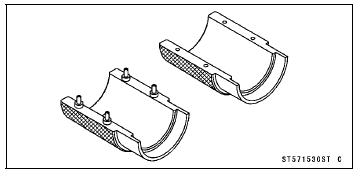

Fork Oil Seal Driver, 43:
57001-1530

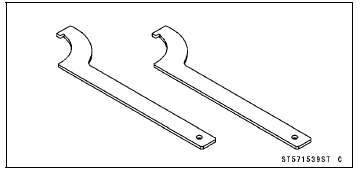

Hook Wrench T=3.2 R37: 57001-1539

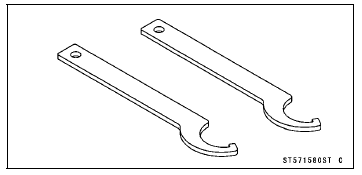

Hook Wrench R=35: 57001-1580

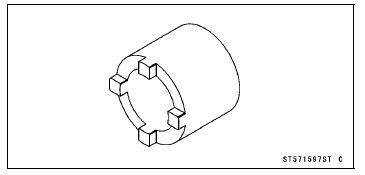

Swingarm Pivot Nut Wrench: 57001-1597

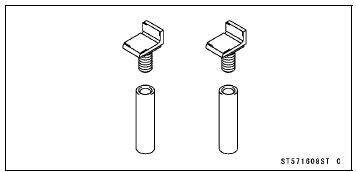

Jack Attachment: 57001-1608

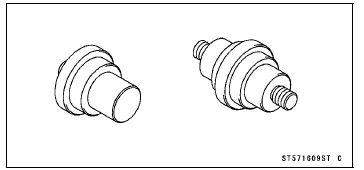

Needle Bearing Driver, 17/
18:
57001-1609

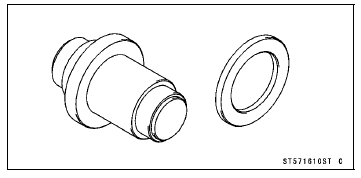

Needle Bearing Driver, 28:
57001-1610

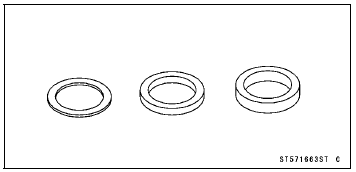

Spacer 28:
57001-1663

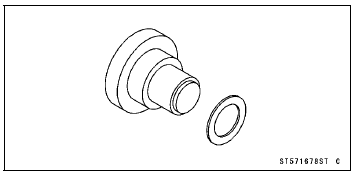

Needle Bearing Driver, 20 &
Spacer, 28:
57001-1678

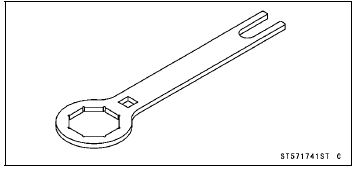

Top Plug Wrench (45 mm): 57001-1741

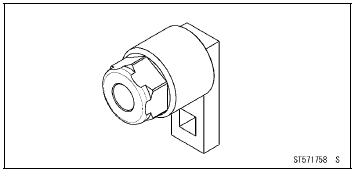

Rod Guide Case Wrench, 35 mm: 57001-1758
