Kawasaki Ninja Service Manual: Throttle Body Assy Installation

Kawasaki Ninja Service Manual / Fuel System (DFI) / Throttle Body Assy / Throttle Body Assy Installation

Apply a thin coat of grease to the throttle cable lower ends.

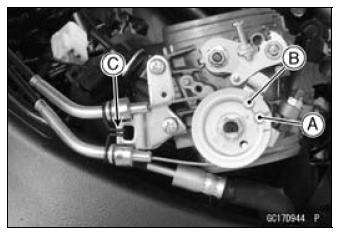

Fit the accelerator cable end [A] and the decelerator cable end [B] into the throttle pulley.
Install the clamp [C] securely.

Throttle Body Assy Installation

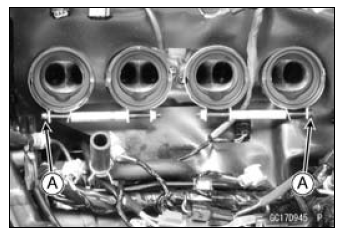

Install the throttle body assy holder clamp bolt heads [A] outside as shown in the figure.
Tighten: Torque - Throttle Body Assy Holder Clamp Bolts: 2.0 N·m (0.20 kgf·m, 18 in·lb)

Throttle Body Assy Installation

Turn the throttle grip and make sure that the throttle pulley moves smoothly and return by spring force.
Run the leads and hoses correctly (see Cable, Wire, and Hose Routing section in the Appendix chapter).
Adjust: Throttle Grip Free Play (see Throttle Control System Inspection in the Periodic Maintenance chapter)
