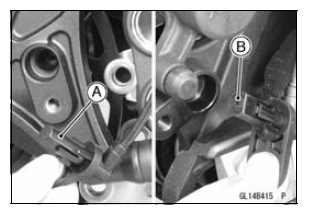

Remove the front wheel rotation sensor [A] from the front fork.
Remove the rear wheel rotation sensor [B] from the caliper bracket.
Visually inspect the wheel rotation sensors.

Replace the wheel rotation sensor if it is cracked, bent, or otherwise damaged.

Wheel Rotation Sensor Inspection

Rear Wheel Rotation Sensor Installation

Installation is the reverse of removal. Route the lead correctly (see Cable, Wire, and Hose Routing section in the Appendix chapter). ...

Wheel Rotation Sensor Air Gap Inspection

Raise the front/rear wheel off the ground (see Front/Rear Wheel Removal in the Wheels/Tires chapter). Measure the air gap between the sensor and sensor rotor at several points by turning the ...
