The motorcycle is equipped with a side stand.

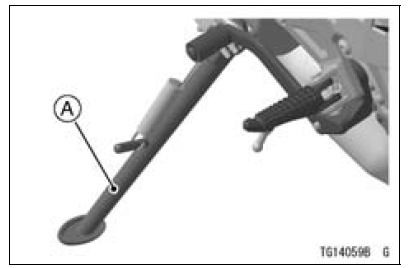

A. Side Stand
NOTE
When using the side stand, turn the handlebar to the left.
Do not sit on the motorcycle while it is on its side stand or centre stand.
Always kick the stand fully up before sitting on the motorcycle.
NOTE
The motorcycle is equipped with a side stand switch. This switch is designed so that the engine does not start if the transmission is in gear and the side stand is down.
Nozzle Assy Disassembly
Remove the nozzle assy (see Nozzle Assy Removal).
Pull out the secondary fuel injectors [A] from the delivery
pipe assy [B].
NOTE
Do not damage the insertion portions of the injectors
when they are pulled out from the delivery pipe assy.
NOTICE
Never drop the secondary fuel injecto ...
Turn Signal Switch
When the turn signal switch is
pushed to the left ( ) or right
( ), the corresponding turn signals
blink on and off.
To stop blinking, push the switch in.
Horn Button
When the horn button is pushed, the
horn sounds
LAP/Passing Button
When the LAP/passing button is
pushed, the headlight hi ...
Exploded View
10. US, CA, CAL and AU Models
11. ZX1000JD/KD
G: Apply grease.
L: Apply a non-permanent locking agent.
R: Replacement Parts
S: Follow the specified tightening sequence.
1. US, CA and CAL Models
2. ZX1000J Model
3. ZX1000K Model
4. AU Model
5. Face the large diameter side re ...
