Kawasaki Ninja Service Manual: Brake Fluid Leak (Brake Hose and Pipe) Inspection

Kawasaki Ninja Service Manual / Periodic Maintenance / Periodic Maintenance Procedures / Brakes / Brake Fluid Leak (Brake Hose and Pipe) Inspection

For KIBS equipped models, remove the fuel tank (see Fuel Tank Removal in the Fuel System (DFI) chapter).

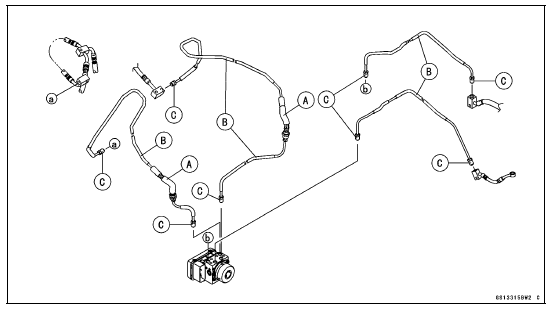

Apply the brake lever or pedal and inspect the brake fluid leak from the brake hoses [A], pipes (KIBS equipped models) [B] and fittings [C].

If the brake fluid leaked from any position, inspect or replace the problem part.

Brake Fluid Leak (Brake Hose and Pipe) Inspection

Brakes

...

Brake Hose and Pipe Damage and Installation Condition Inspection

Inspect the brake hoses, pipes and fittings for deterioration, cracks and signs of leakage. The high pressure inside the brake line can cause fluid to leak [A] or the hose to burst if the lin ...
