NOTE
Check the level when the engine is cold (room or ambient temperature).

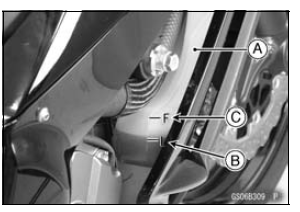

Check the coolant level in the reserve tank [A] with the motorcycle held perpendicular (Do not use the sidestand).
If the coolant level is lower than the “L” level line [B], remove the upper fairing assembly (see Upper Fairing Assembly Removal in the Frame chapter), and then unscrew the reserve tank cap and add coolant to the “F” level line [C].
“L”: Low
“F”: Full
NOTICE
For refilling, add the specified mixture of coolant and soft water. Adding water alone dilutes the coolant and degrades its anticorrosion properties.
The diluted coolant can attack the aluminum engine parts. In an emergency, soft water alone can be added. But the diluted coolant must be returned to the correct mixture ratio within a few days.
If coolant must be added often or the reservoir tank has run completely dry, there is probably leakage in the cooling system. Check the system for leaks.
Coolant ruins painted surfaces. Immediately wash away any coolant that spills on the frame, engine, wheels or other painted parts.
Cooling System
Radiator Hose and Pipe Inspection (coolant leak, damage, installation
condition)Exhaust Butterfly Valve Actuator Sensor Output Voltage Inspection
NOTE
Before this inspection, confirm the pulley is original
position (see Exhaust Butterfly Valve Actuator Installation).
Disconnect:
3 Pins Connector [A] (see Exhaust Butterfly Valve Actuator
Sensor Output Voltage Inspection)
2 Pins Connector [B]
Connect the harness adapter [A ...
Idle Speed Control Valve Actuator Resistance Inspection
Turn the ignition switch to OFF.
Remove the air cleaner housing (see Air Cleaner Housing
Removal in the Fuel System (DFI) chapter).
Disconnect the idle speed control valve actuator connector
[A].
Connect a digital meter to the idle speed control valve
actuator connector [A]
...
Front Wheel Removal
Remove:
Front Caliper Mounting Bolts [A] (Both Sides)
Front Caliper [B] (Both Sides)
Loosen:
Front Axle Clamp Bolts [A] (Right Side)
Front Axle [B]
Remove the lower fairings (see Lower Fairing Removal in
the Frame chapter).
Raise the front wheel off the ground.
...
