Kawasaki Ninja Service Manual: Crankshaft Runout Inspection

Kawasaki Ninja Service Manual / Crankshaft/Transmission / Crankshaft and Connecting Rods / Crankshaft Runout Inspection

If the measurement exceeds the service limit, replace the crankshaft.

Crankshaft Runout

Standard: TIR 0.03 mm (0.0012 in.) or less

Service Limit: TIR 0.08 mm (0.0032 in.)

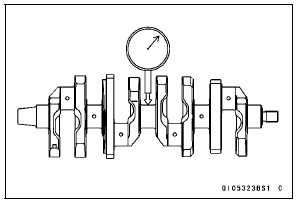

Crankshaft Runout Inspection


Crankshaft Side Clearance Inspection
Insert a thickness gauge [A] between the thrust washer [B] on the crankcase and the crank web [C] at the #3 main journal to determine clearance. If the clearance exceeds the service limit, r ...

Crankshaft Main Bearing Insert/Journal Wear Inspection
Split the crankcase (see Crankcase Splitting). Cut strips of plastigage to journal width. Place a strip on each journal parallel to the crankshaft installed in the correct position. Tighten ...
