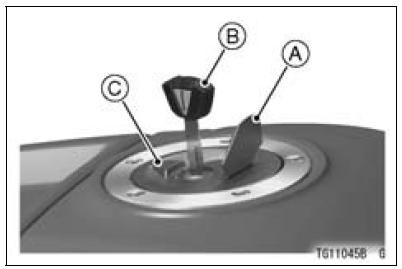

To open the fuel tank cap, pull up the key hole cover. Insert the ignition key into the fuel tank cap and turn the key to the right.
To close the cap, push it down into place with the key inserted. The key can be removed by turning it to the left to the original position. Close the key hole cover.
NOTE

A. Key Hole Cover
B. Ignition Key
C. Fuel Tank Cap
Brake Lever Adjuster
Fuel TankOil Pump Drive Gear Shaft Installation
Apply molybdenum disulfide grease [A] to the oil pump
drive gear shaft.
Apply molybdenum disulfide oil solution to the followings.
Transmission Case [B]
Crankcase [C]
Install the oil pump drive gear shaft and washer [D] as
shown in the figure.
Install the new circlip [E] into the ...
Engine Sprocket Removal
Remove:
Engine Sprocket Cover Bolts [A]
Engine Sprocket Cover [B]
Flatten out the bended washer [A].
Remove the engine sprocket nut [B] and washer.
NOTE
When loosening the engine sprocket nut, hold the rear
brake on.
Raise the rear wheel off the ground with the stand. ...
Coolant Flow Chart
1. Radiator
2. Radiator Fan
3. Water Pump
4. Oil Cooler
5. Oil Cooler Intake Hose
6. Oil Cooler Outlet Hose
7. Cylinder Jacket
8. Cylinder Head Jacket
9. Thermostat Housing
10. Air Bleeder Hose
11. Radiator Cap
12. Radiator Overflow Hose
13. Reserve Tank
14. Reserve Tank Overflow Ho ...
