Transmission Case [B] Crankcase [C]
Special Tool - Outside Circlip Pliers: 57001-144

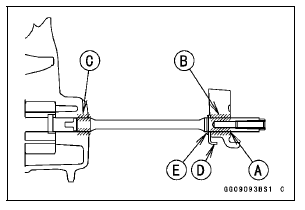

Oil Pump Drive Gear Shaft Removal
Oil CoolerOil Pressure Measurement
Remove:
Right Lower Fairing (see Lower Fairing Removal in the
Frame chapter)
Oil Passage Plug [A]
Attach the adapter [A] and gauge [B] to the plug hole.
Special Tools - Oil Pressure Gauge, 10 kgf/cm²: 57001-164
Oil Pressure Gauge Adapter, PT3/8: 57001
-1233
...
Release Shaft Installation
Apply grease to the oil seal lips on the upper ridge of the
clutch cover.
Apply engine oil to the needle bearings in the hole of the
clutch cover.
Applymolybdenum disulfide grease to the pusher-holding
portion [A] on the release shaft.
Install the washer [B] and spring [C].
...
DFI System Wiring Diagram (KIBS Equipped Models)
1. Air Intake Solenoid Valve (Other than US, CA and CAL Models)
2. Engine Stop Switch
3. Starter Button
4. Air Switching Valve
5. Stick Coil #1, #2, #3, #4
6. Spark Plugs
7. Intake Air Temperature Sensor
8. Crankshaft Sensor
9. Secondary Fuel Injector #1
10. Secondary Fuel Injector #2
...
