Passenger’s Seat Removal

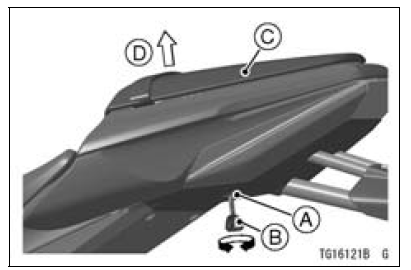

A. Seat Lock

B. Ignition Key

C. Passenger’s seat

D. Pull up

NOTE

When removing the passenger’s seat, pull it up while turning the key.
