Kawasaki Ninja Owners Manual: Rider’s Seat Installation

Kawasaki Ninja Owners Manual / General information / Seats / Rider’s Seat Installation

Insert the tabs on the front of the rider’s seat into the slots in the frame and secure the seat with mounting bolts.
Install the seat cover and bolts.

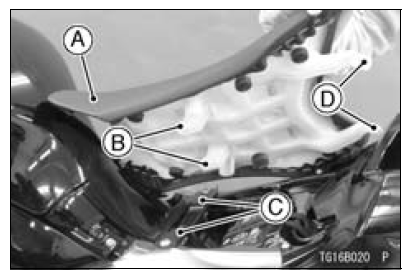

A. Rider’s Seat

B. Tabs

C. Slots

D. Stays

Rider’s Seat Removal

Remove the bolts and seat cover. A. Bolts B. Seat Cover Remove the mounting bolts and pull off the seat upward. A. Mounting Bolts B. Rider’s Seat ...

Passenger’s Seat Installation

Insert the tab on the rear of the passenger’s seat into the slot in the frame. Insert the projections at the front of the passenger’s seat into the holes on the frame. Push down the ...
