Kawasaki Ninja Service Manual: Special Tools

Kawasaki Ninja Service Manual / Steering / Special Tools

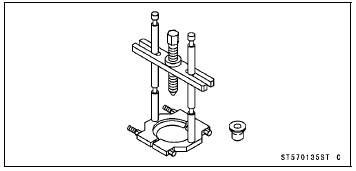

Bearing Puller: 57001-135

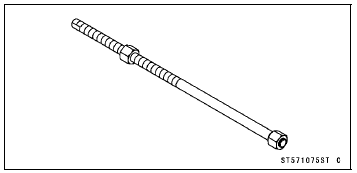

Head Pipe Outer Race Press Shaft: 57001-1075

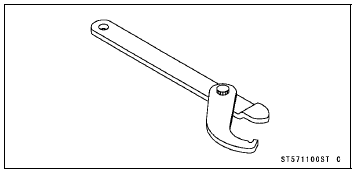

Steering Stem Nut Wrench: 57001-1100

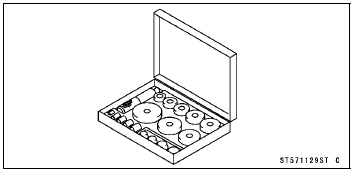

Bearing Driver Set: 57001-1129

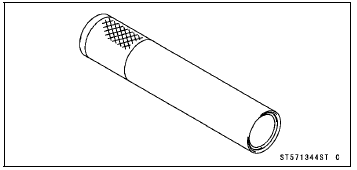

Steering Stem Bearing Driver, 42.5:
57001-1344

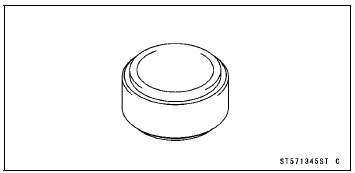

Steering Stem Bearing Driver Adapter, 41.5:
57001-1345

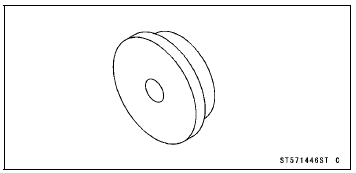

Head Pipe Outer Race Driver, 55:
57001-1446


Exploded View
11. ZX1000JD/KD AD: Apply adhesive. AL: Tighten the two clamp bolts alternately two times to ensure even tightening torque. G: Apply grease. L: Apply a non-permanent locking agent. ...

Steering
Steering Inspection Refer to the Steering Play Inspection in the PeriodicMaintenance chapter. Steering Adjustment Refer to the Steering Play Adjustment in the Periodic Maintenance chapt ...
