Kawasaki Ninja Service Manual: Special Tools and Sealant

Kawasaki Ninja Service Manual / Fuel System (DFI) / Special Tools and Sealant

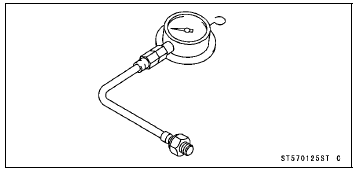

Oil Pressure Gauge, 5 kgf/cm²: 57001-125

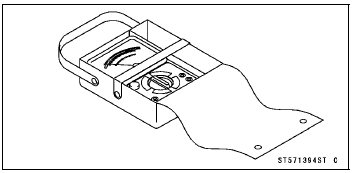

Hand Tester: 57001-1394


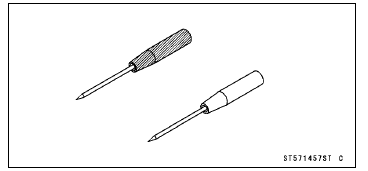

Needle Adapter Set: 57001-1457

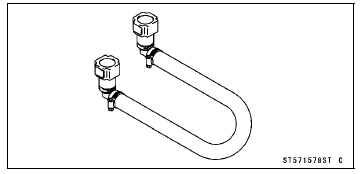

Extension Tube: 57001-1578

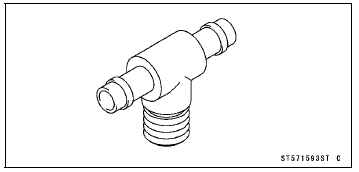

Fuel Pressure Gauge Adapter: 57001-1593

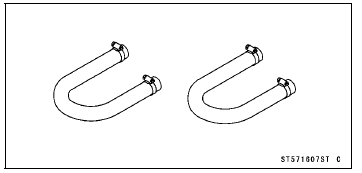

Fuel Hose: 57001-1607

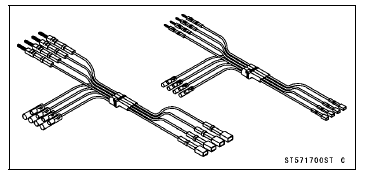

Measuring Adapter: 57001-1700

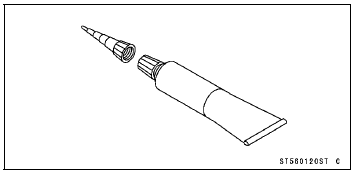

Liquid Gasket, TB1211: 56019-120


DFI Parts Location
Main Throttle Sensor [A] Subthrottle Sensor [B] Idle Speed Control Valve Actuator [C] Subthrottle Valve Actuator [D] Intake Air Pressure Sensor #2 [E] Stick Coils #1, #2, #3, #4 [F] Air Switchin ...

DFI Servicing Precautions
There are a number of important precautions that should be followed servicing the DFI system. This DFI system is designed to be used with a 12 V sealed battery as its power source. Do not use a ...
