Disconnect the intake air temperature sensor connector [A] (see Intake Air Temperature Sensor Removal in the Self-Diagnosis System chapter).

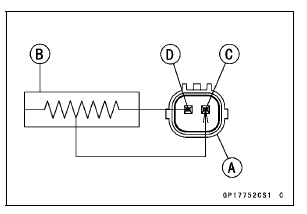

Connect the variable rheostat [B] to the R/BK lead [C] and BR/BK lead [D] terminals.

Check 2-3: Intake Air Temperature Inspection

Turn the ignition switch to ON.

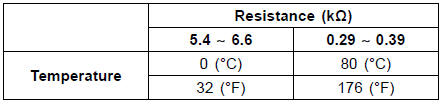

Read the temperature in the display

The display range is –20 ∼ 140°C (–4 ∼ 284°F).

If the temperature is out of the range, the indication fixes the minimum value or maximum value.

When the speed is 20 km/h (12 mph) or less and rising the temperature, the indication fixes the value of just before the indication.

If the display function does not work, check the wiring (see Meter Unit Circuit).

If the wiring is good, replace the meter assembly.
