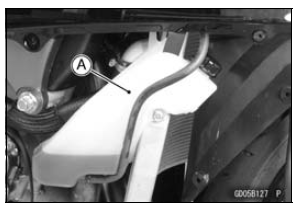

If whitish cotton-like wafts are observed, aluminum parts in the cooling system are corroded. If the coolant is brown, iron or steel parts are rusting. In either case, flush the cooling system.
If the coolant gives off an abnormal smell, check for a cooling system leak. It may be caused by exhaust gas leaking into the cooling system.
Coolant Level Inspection
Refer to the Coolant Level Inspection in the PeriodicMaintenance chapter.
Coolant Draining
Refer to the Coolant Change in the Periodic Maintenance chapter.
Coolant Filling
Refer to the Coolant Change in the Periodic Maintenance chapter.
Coolant
Pressure TestingExhaust Butterfly Valve Actuator Sensor Resistance Inspection
Turn the ignition switch to OFF.
Disconnect the exhaust butterfly valve actuator sensor
connector (3 pins connector) [A] (see Exhaust Butterfly
Valve Actuator Sensor Input Voltage Inspection).
Connect a digital meter [B] to the exhaust butterfly valve
actuator sensor connector.
Measur ...
Crankshaft Sensor Removal
Remove:
Fuel Tank (see Fuel Tank Removal in the Fuel System
(DFI) chapter)
Crankshaft Sensor Lead Connector [A]
Remove:
Right Lower Fairing (see Lower Fairing Removal in the
Frame chapter)
Bolts [A]
Crankshaft Sensor Cover [B] and Gasket
Oil Pressure Switch Terminal [C]
...
Nozzle Assy Disassembly
Remove the nozzle assy (see Nozzle Assy Removal).
Pull out the secondary fuel injectors [A] from the delivery
pipe assy [B].
NOTE
Do not damage the insertion portions of the injectors
when they are pulled out from the delivery pipe assy.
NOTICE
Never drop the secondary fuel injecto ...
