Kawasaki Ninja Service Manual: ESD (Electronic Steering Damper) ECU Removal (ZX1000JD/KD)

Kawasaki Ninja Service Manual / Steering / Steering Damper / ESD (Electronic Steering Damper) ECU Removal (ZX1000JD/KD)

NOTICE

Never drop the ECU especially on a hard surface.

Such a shock to the ECU can damage it.

Lift up the front portion of the fuel tank, and hold it with a suitable bar or block (see Fuel Tank Removal in the Fuel System (DFI) chapter).

ESD (Electronic Steering Damper) ECU Removal (ZX1000JD/KD)

NOTE

When removing the ESD ECU only, there is no need to lift up the fuel tank.

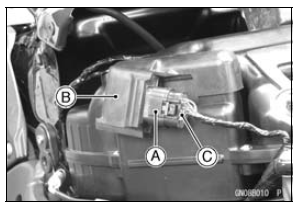

Remove the ESD ECU [A] with the rubber protector [B].
Disconnect the ESD ECU connector [C].

Steering Damper Installation

Install the following parts as shown in the figure. Collar [A] Washer (t = 3.5 mm, 0.14 in.) [B] Steering Damper [C] ( ZX1000JC/KC) Electronic Steering Damper [D] (ZX1000JD/KD) Washe ...

ESD (Electronic Steering Damper) ECU Installation (ZX1000JD/KD)

Install the ESD ECU [A] in the rubber protector [B]. Connect the ESD ECU connector. Install the ESD ECU on the air cleaner housing. Install the removed parts (see appropriate chapters). ...
