Kawasaki Ninja Service Manual: For Primary Fuel Injectors

Kawasaki Ninja Service Manual / Fuel System (DFI) / Fuel Injectors / Fuel Injector Resistance Inspection / For Primary Fuel Injectors

Remove the air cleaner housing (see Air Cleaner Housing Removal).

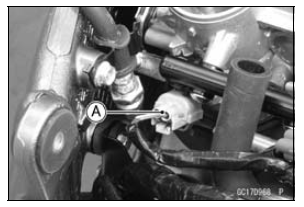

Disconnect the primary fuel injector connector [A].

For Primary Fuel Injectors

Connect a digital meter to the terminals in each primary fuel injector [A].
Measure the primary fuel injector resistance.

Fuel Injector Resistance Inspection

Primary Fuel Injector Resistance Standard: About 11.7 12.3 Ω at 20°C
(68°F)

If the reading is out of the standard, replace the primary fuel injector.
If the reading is within the standard, check the power source voltage (see Fuel Injector Power Source Voltage Inspection).

Fuel Injector Resistance Inspection

...

For Secondary Fuel Injectors

Remove the fuel tank (see Fuel Tank Removal). Disconnect the secondary fuel injector connector [A]. Connect a digitalmeter to the terminals in each secondary fuel injector [A]. Meas ...
