Kawasaki Ninja Service Manual: ECU Identification

Kawasaki Ninja Service Manual / Fuel System (DFI) / ECU / ECU Identification

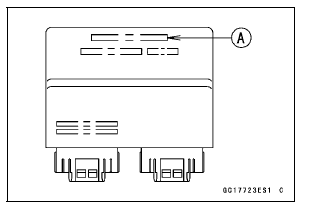

ECU Identification


ECU Identification

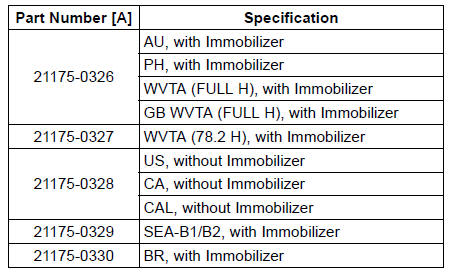

ZX1000JB/KB

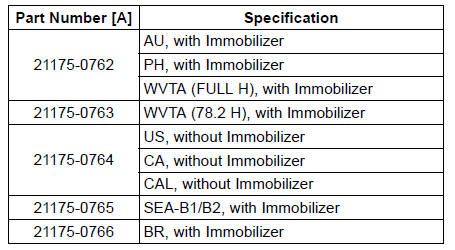

ZX1000JC /KC


ECU
...

ECU Removal
NOTICE Never drop the ECU especially on a hard surface. Such a shock to the ECU can damage it. Remove the upper air cleaner housing (see Air Cleaner Element Replacement in the Periodic Maint ...

Other materials:

Terminal Numbers of ECU Connectors
1. Subthrottle Valve Actuator: Y/BK 2. Subthrottle Valve Actuator: BK/O 3. Unused 4. Front Wheel Rotation Sensor Signal: G/Y 5. Unused 6. Starter Lockout Switch: R/G 7. Gear Position Switch: G/R 8. Crankshaft Sensor (–): BK 9. Power Supply to Sensors: BL 10. Unused 11. Intake Air Pre ...
