Kawasaki Ninja Service Manual: Water Pump Housing Disassembly

Kawasaki Ninja Service Manual / Cooling System / Water Pump / Water Pump Housing Disassembly

NOTICE

Do not damage the hole wall of the water pump housing.

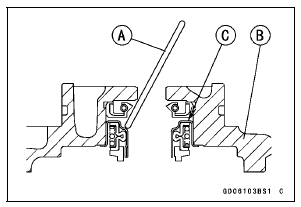

Insert a bar [A] into the pump housing [B], and hammer evenly around the circumference of the mechanical seal bottom [C].

Water Pump Housing Disassembly

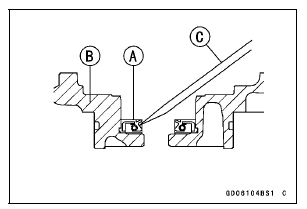

Take the oil seal [A] out of the housing [B] with a hook [C].

Water Pump Housing Disassembly

Water Pump Impeller Inspection

Remove the water pump cover (see Oil Pump Removal in the Engine Lubrication System chapter). Visually inspect the impeller [A]. If the surface is corroded or if the blades are damaged, repl ...

Water Pump Housing Assembly

NOTICE Do not reuse the mechanical seal and oil seal. Apply high-temperature grease to the new oil seal lips [A]. Press the new oil seal into the housing with a bearing driver [B] until it st ...
