Kawasaki Ninja Service Manual: Water Pump Impeller Inspection

Kawasaki Ninja Service Manual / Cooling System / Water Pump / Water Pump Impeller Inspection

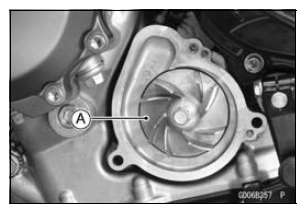

If the surface is corroded or if the blades are damaged, replace the impeller

Water Pump Impeller Inspection


Water Pump Impeller Disassembly/Assembly
Remove the water pump impeller (see Oil Pump Removal in the Engine Lubrication System chapter). The sealing seat and rubber seal may be removed easily by hand. Apply coolant around the surf ...

Water Pump Housing Disassembly
NOTICE Do not damage the hole wall of the water pump housing. Insert a bar [A] into the pump housing [B], and hammer evenly around the circumference of the mechanical seal bottom [C]. ...
