Kawasaki Ninja Service Manual: Clutch Housing Spline Inspection

Kawasaki Ninja Service Manual / Clutch / Clutch / Clutch Housing Spline Inspection

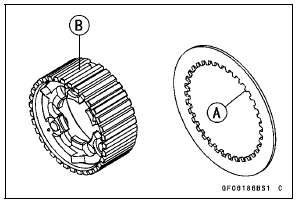

If there are notches worn into the splines, replace the sub clutch hub. Also, replace the steel plates if their teeth are damaged.

Clutch Housing Spline Inspection


Clutch Housing Finger Inspection
Visually inspect the clutch housing fingers [A] where the friction plate tangs [B] hit them. If they are badly worn or if there are groove cuts where the tangs hit, replace the housing. Also, ...

Damper Cam Inspection
Remove the clutch (see Clutch Removal). Visually inspect the damper cam[A], cam follower [B], and the torque limiter spring [C]. Replace the part if it appears damaged. ...
