Kawasaki Ninja Service Manual: Damping Force Adjustment ( ZX1000JC/KC)

Kawasaki Ninja Service Manual / Steering / Steering Damper / Damping Force Adjustment ( ZX1000JC/KC)

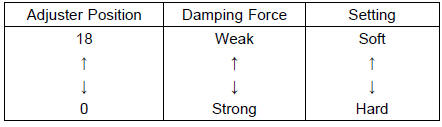

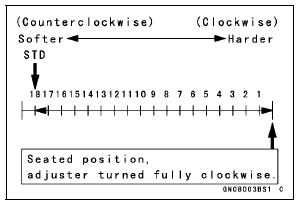

The standard adjuster setting is the 18th click from the 1st of the fully clockwise position. If the damping feels too soft or too stiff, adjust it in accordance with the following table.

Damping Force Adjustment


Damping Force Adjustment ( ZX1000JC/KC)


Damping Force Adjustment ( ZX1000JC/KC)


Steering Damper
...

Steering Damper Removal
ZX1000JC/KC Remove: Steering Damper Mounting Bolts (TORX Bolts) [A] Washer [B] Washer and Collar [C] Steering Damper [D] ZX1000JD/KD Remove: Clamp [A] Connector [B] (Discon ...
