Kawasaki Ninja Service Manual: Brake Pedal Installation

Kawasaki Ninja Service Manual / Brakes / Brake Lever, Brake Pedal / Brake Pedal Installation

Torque - Brake Pedal Mounting Bolt: 8.8 N·m (0.90 kgf·m, 78 in·lb)

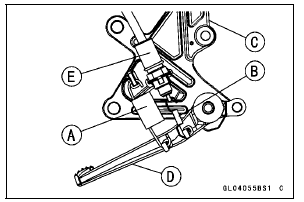

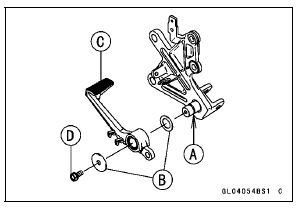

Brake Pedal Installation


Brake Pedal Installation

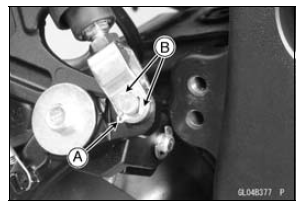

Brake Pedal Installation


Torque - Rear Master Cylinder Mounting Bolts [E]: 25 N·m (2.5 kgf·m, 18 ft·lb)

Run the exhaust butterfly valve cables to the stopper.

Brake Pedal Installation


Brake Pedal Removal

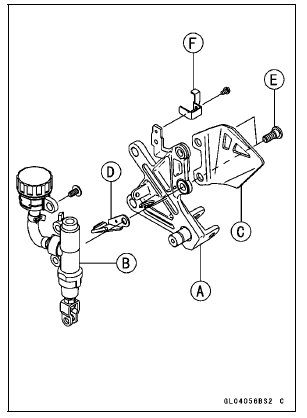

Remove: Rear Master Cylinder Mounting Bolts [A] Foot Guard [B] Screw and Stopper [C] Bolt [D] Front Footpeg Bracket Bolts [E] Cable Guide [F] Remove: Cotter Pin [A] Joint ...
