Remove: Bolts [A] Muffler Body Cover [B]

Muffler Body Removal

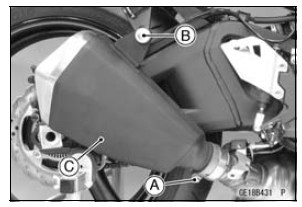

Loosen the muffler body clamp bolt [A].
Remove the muffler body mounting bolt [B], and pull out the muffler body [C] backward from the premuffler chamber.

Muffler Body Removal

Muffler

WARNINGThe muffler can become extremely hot during normal operation and cause severe burns. Do not remove the muffler while it is hot. ...

Muffler Body Installation

Replace the muffler body gasket [A] with a new one. Install the muffler body gasket to the premuffler chamber [B] until it is bottomed so that the chamfer side faces premuffler chamber. Ins ...
