Kawasaki Ninja Service Manual: Rebound Damping Force Adjustment

Kawasaki Ninja Service Manual / Suspension / Front Fork / Rebound Damping Force Adjustment

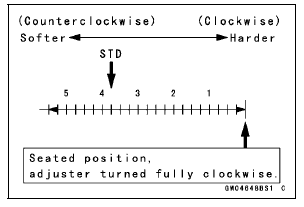

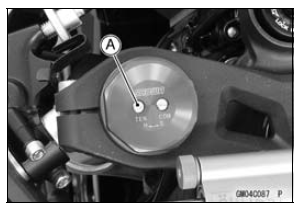

The standard adjuster setting is the 3 3/4 turns out from the fully clockwise position.

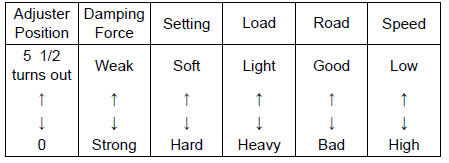

WARNING

If both adjusters are not adjusted equally, handling may be impaired and a hazardous condition may result. Be sure the adjusters are set equally.

Rebound Damping Force Adjustment


Rebound Damping Force Adjustment


Rebound Damping Force Adjustment


Front Fork
...

Compression Damping Force Adjustment
To adjust the compression damping force, turn the compression damping adjuster [A]. The standard adjuster setting is the 4 1/2 turns out from the fully clockwise position. WARNINGIf b ...
