Kawasaki Ninja Service Manual: Rebound Damping Force Adjustment

Kawasaki Ninja Service Manual / Suspension / Rear Shock Absorber / Rebound Damping Force Adjustment

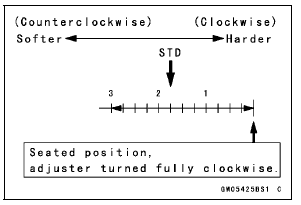

The standard adjuster setting is the 1 3/4 turns out from the fully clockwise position.

Rebound Damping Force Adjustment


Rebound Damping Force Adjustment


Rebound Damping Force Adjustment


Rear Shock Absorber
...

Compression Damping Force Adjustment
There are two adjustments you can make to the compression damping force. High Speed Compression Damping Adjuster [A] Low Speed Compression Damping Adjuster [B] To adjust the high speed co ...

Other materials:

Crankcase Splitting
Remove the engine (see Engine Removal in the Engine Removal/Installation chapter). Set the engine on a clean surface and hold the engine steady while parts are being removed. Remove: Cylinder Head (see Cylinder Head Removal in the Engine Top End chapter) Starter Motor (see Starter M ...

Rebound Damping Force Adjustment

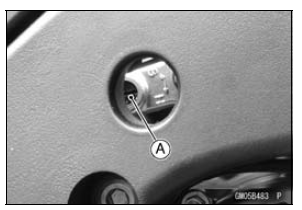

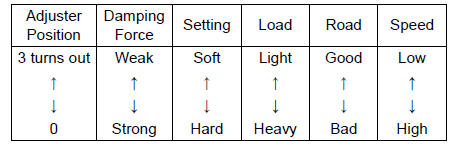

The rebound damping force adjuster is located at the upper end of the rear shock absorber. A. Rebound Damping Force Adjuster B. To increase damping force C. To decrease damping force Using a screwdriver turn the rebound damping force adjuster clockwise to increase rebound damping or ...
