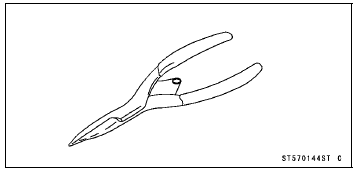

Outside Circlip Pliers:
57001-144

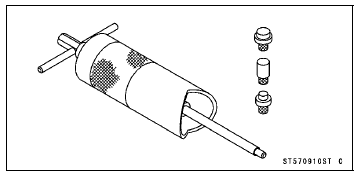

Piston Pin Puller Assembly:
57001-910

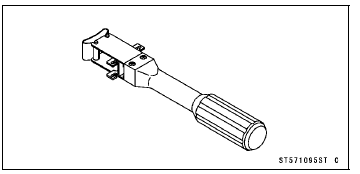

Piston Ring Compressor Grip:
57001-1095

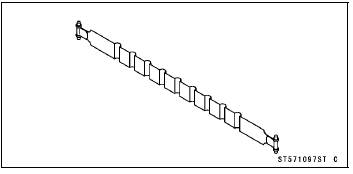

Piston Ring Compressor Belt, 67
79:
57001-1097

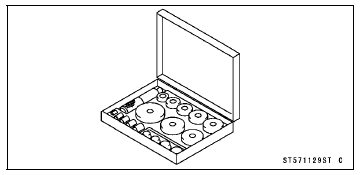

Bearing Driver Set:
57001-1129

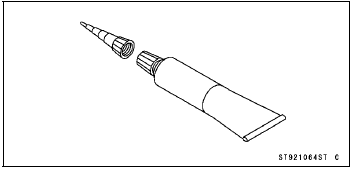

Liquid Gasket, TB1216B:
92104-1064

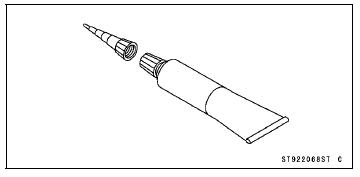

Liquid Gasket, TB1207B:
92104-2068
Spring Preload Adjustment
To adjust the spring preload, turn the spring preload adjuster
[A].
The standard adjuster setting is the 6 turns in from the
fully counterclockwise position.
WARNINGIf both adjusters are not adjusted
equally, handling
may be impaired and a hazardous condition may
result. B ...
Wear Inspection
Remove the left front footpeg bracket
bolts.
A. Front Footpeg Bracket
B. Bolts
Remove the bolts and chain cover.
A. Bolts
B. Chain Cover
Stretch the chain taut either by using
the chain adjusters, or by hanging a
10 kg (22 lb) weight on the chain.
Measure the lengt ...
Brake Lever Adjuster
There is an adjuster on the brake
lever. The adjuster has 6 positions so
that the released lever position can be
adjusted to suit the operator’s hands.
Push the lever forward and turn the adjuster
to align the number with the mark
on the lever holder. The distance from
the grip to the rel ...
