Kawasaki Ninja Service Manual: Wiring Diagram (US, CA and CAL with KIBS Models)

Kawasaki Ninja Service Manual / Electrical System / Wiring Diagram (US, CA and CAL with KIBS Models)

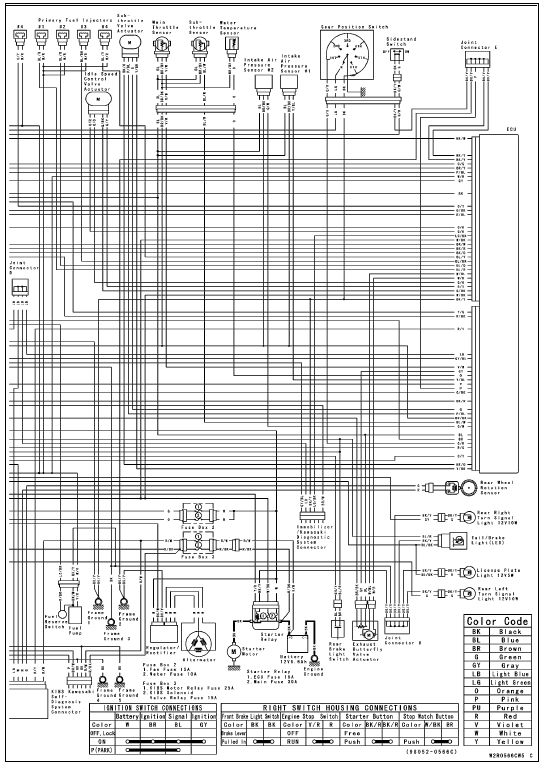

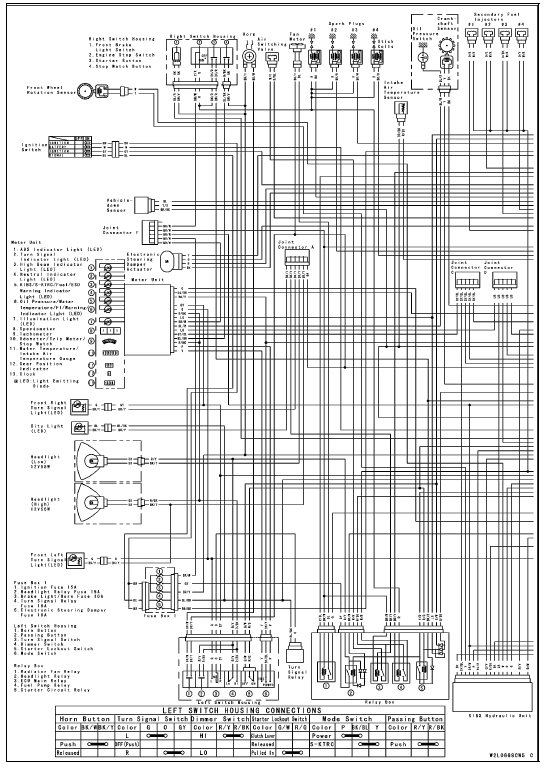

ZX1000KC

Wiring Diagram (US, CA and CAL with KIBS Models)


Wiring Diagram (US, CA and CAL with KIBS Models)

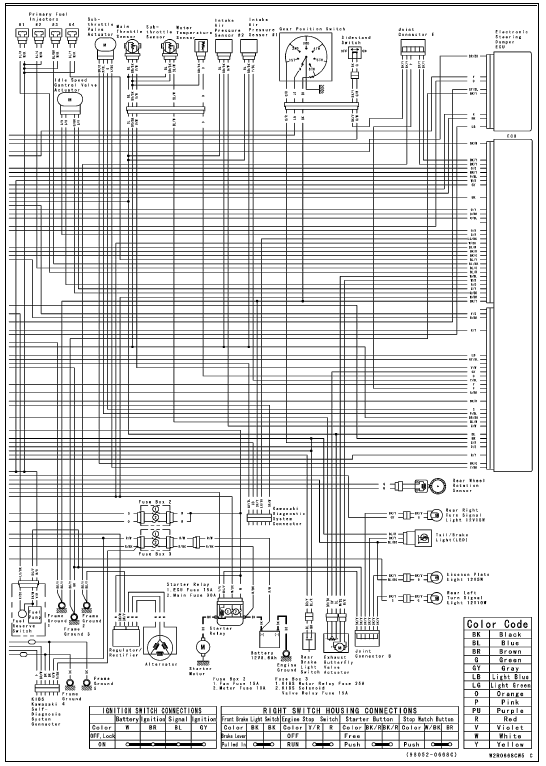

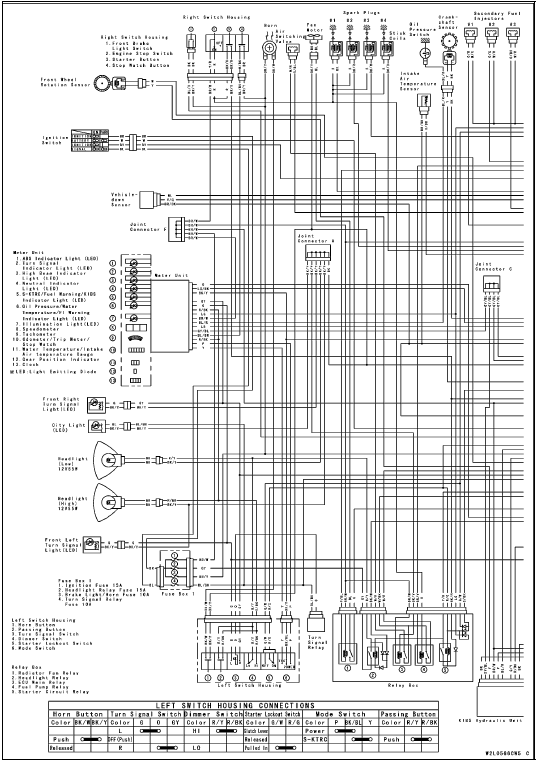

ZX1000KD

Wiring Diagram (US, CA and CAL with KIBS Models)


Wiring Diagram (US, CA and CAL with KIBS Models)


Wiring Diagram (US, CA and CAL without KIBS Models)
ZX1000JC ZX1000JD ...

Wiring Diagram (Other than US, CA and CAL without KIBS Models)
ZX1000JC ZX1000JD ...
