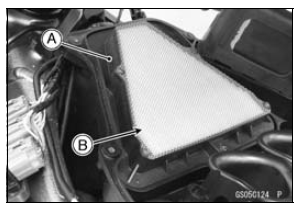

NOTE
In dusty areas, the element should be replaced more frequently than the recommended interval.
| WARNING If dirt or dust is allowed to pass through into the throttle body assy, the throttle may become stuck, possibly causing accident. Replace the air cleaner element according to the maintenance chart. |
NOTICE
If dirt gets through into the engine, excessive engine wear and possibly engine damage will occur.
NOTICE
Use only the recommended air cleaner element (Kawasaki part number 11013-0041). Using another air cleaner element will wear the engine prematurely or lower the engine performance.
Fuel Hose ReplacementExhaust Butterfly Valve Actuator Resistance Inspection
Turn the ignition switch to OFF.
Disconnect the exhaust butterfly valve actuator lead connector
(2 pins connector) [A].
Set the hand tester to the × 1 Ω range and connect it to
the exhaust butterfly valve actuator connector.
Special Tool - Hand Tester: 57001-1394
Measure ...
Vehicle-down Sensor Input Voltage Inspection
NOTE
Be sure the battery is fully charged.
Turn the ignition switch to OFF.
Disconnect the vehicle-down sensor connector and connect
the measuring adapter [A] between these connectors
as shown in the figure.
Main Harness [B]
Vehicle-down Sensor [C]
Special Tool - Measuring Adapte ...
DFI Parts Location
Main Throttle Sensor [A]
Subthrottle Sensor [B]
Idle Speed Control Valve Actuator [C]
Subthrottle Valve Actuator [D]
Intake Air Pressure Sensor #2 [E]
Stick Coils #1, #2, #3, #4 [F]
Air Switching Valve [G]
Intake Air Pressure Sensor #1 [H]
Water Temperature Sensor [A]
Primary Fuel Injec ...
