Kawasaki Ninja Service Manual: Clutch Housing Spline Inspection

Kawasaki Ninja Service Manual / Clutch / Clutch / Clutch Housing Spline Inspection

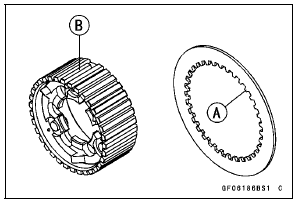

Visually inspect where the teeth [A] on the steel plates wear against the sub clutch hub splines [B].

If there are notches worn into the splines, replace the sub clutch hub. Also, replace the steel plates if their teeth are damaged.

Clutch Housing Spline Inspection

Clutch Housing Finger Inspection

Visually inspect the clutch housing fingers [A] where the friction plate tangs [B] hit them. If they are badly worn or if there are groove cuts where the tangs hit, replace the housing. Also, ...

Damper Cam Inspection

Remove the clutch (see Clutch Removal). Visually inspect the damper cam[A], cam follower [B], and the torque limiter spring [C]. Replace the part if it appears damaged. ...
