Kawasaki Ninja Service Manual: Exhaust Pipe Removal

Kawasaki Ninja Service Manual / Engine Top End / Muffler / Exhaust Pipe Removal

Remove: Radiator (see Radiator and Radiator Fan Removal in the Cooling System chapter) Exhaust Pipe Clamp Bolt [A] (Loosen)

Exhaust Pipe Removal

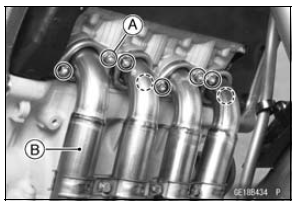

Remove the exhaust pipe holder nuts [A], and pull out the exhaust pipe [B] forward from the premuffler chamber.

Exhaust Pipe Removal

Premuffler Chamber Installation

Replace the premuffler chamber gasket [A] with a new one. Install the premuffler chamber gasket to the premuffler chamber [B] until it is bottomed so that the chamfer side faces exhaust pip ...

Exhaust Pipe Installation

Replace the exhaust pipe gaskets [A] and premuffler chamber gasket [B] with new ones. Install the premuffler chamber gasket to the premuffler chamber [C] until it is bottomed so that the cham ...

Other materials:

Exhaust Butterfly Valve Actuator Inspection
NOTE Be sure the battery is fully charged Remove the front seat (see Front Seat Removal in the Frame chapter). Turn the ignition switch to ON. In the left side view of the motorcycle, check to see the pulley [A] clockwise [B] and counterclockwise [C] smoothly. The pulley turns ...

Rear Frame Front Removal
Remove: Rear Frame Rear (see Rear Frame Rear Removal) Rear Fender Front (see Rear Fender Front Removal) Rear Footpeg Bracket Bolts [A] Rear Footpeg Bracket [B] Rear Frame Front Bolts [C] Left Rear Frame Front [D] Remove: Rear Footpeg Bracket Bolts [A] Rear Footpeg Bracke ...

Exploded View
10. US, CA, CAL and AU Models 11. ZX1000JD/KD G: Apply grease. L: Apply a non-permanent locking agent. R: Replacement Parts S: Follow the specified tightening sequence. 1. US, CA and CAL Models 2. ZX1000J Model 3. ZX1000K Model 4. AU Model 5. Face the large diameter side re ...
