Kawasaki Ninja Service Manual: KIBS Motor Relay Inspection (Service Code b 35)

Kawasaki Ninja Service Manual / Self-Diagnosis System / KIBS Service Codes (KIBS Equipped Models) / KIBS Motor Relay Inspection (Service Code b 35)

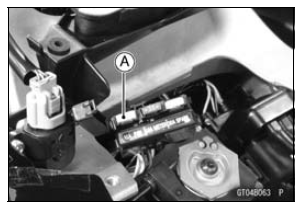

If the fuse is good, check the wiring continuity as follows.

Disconnect: Battery Positive Cable (see Battery Removal in the Electrical System chapter) KIBS Hydraulic Unit Lead Connector (see KIBS Hydraulic Unit Removal in the Brakes chapter)

KIBS Motor Relay Inspection (Service Code b 35)

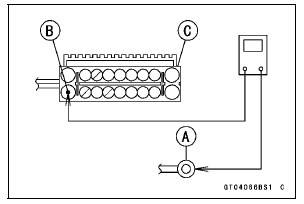

Check the wiring continuity between the positive cable terminal [A] of the battery and R/W lead terminal [B] in the KIBS Hydraulic Unit Lead Connector [C].

If the wiring is open, replace or repair the harness (see KIBS System Circuit in the Brakes chapter).

If the wiring is good, go to next step.

KIBS Motor Relay Inspection (Service Code b 35)


The KIBS motor relay is built in the KIBS Hydraulic Unit.

Therefore the relay cannot be checked directly.

If this service code appears even if all checks are ended, replace the KIBS hydraulic unit.

If the service code does not appear, the KIBS system normal (temporary failure).
