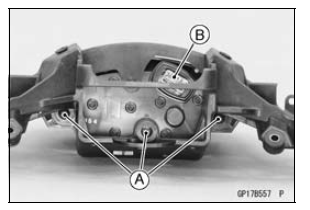

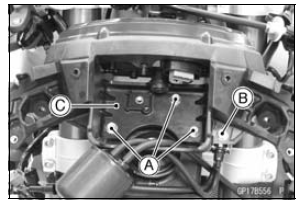

Meter Unit Removal/Installation


Meter Unit Removal/Installation


Meter Unit Removal/Installation


NOTICE

Place the meter unit so that the face is up. If ameter unit is left upside down or sideways for any length of time, it will malfunction.

Run the lead correctly (see Cable, Wire, and Hose Routing section in the Appendix chapter).

Tighten: Torque - Meter Unit Mounting Screws: 1.2 N·m (0.12 kgf·m, 11 in·lb)

Meter Unit Disassembly

NOTICE

Do not disassemble the meter unit, because the individual parts of meter unit are damaged.

Meter, Gauge, Indicator Unit
...

Meter Operation Inspection
Check 1-1: Switching Inspection Turn the ignition switch to ON and check the following. The all LCD segments [A] appear for 3 seconds. The warning indicator light (Red LED) [B] goes on for 3 ...
